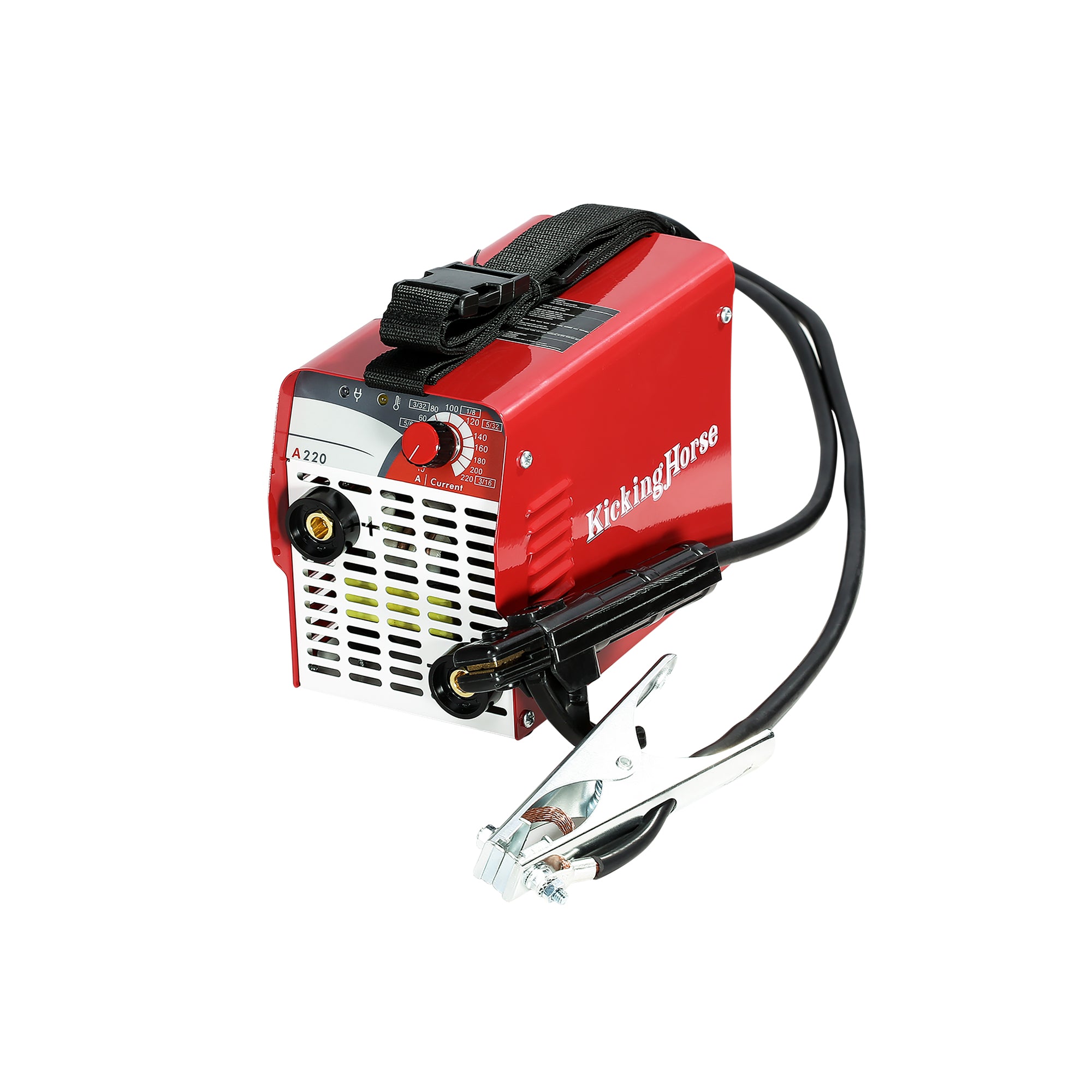

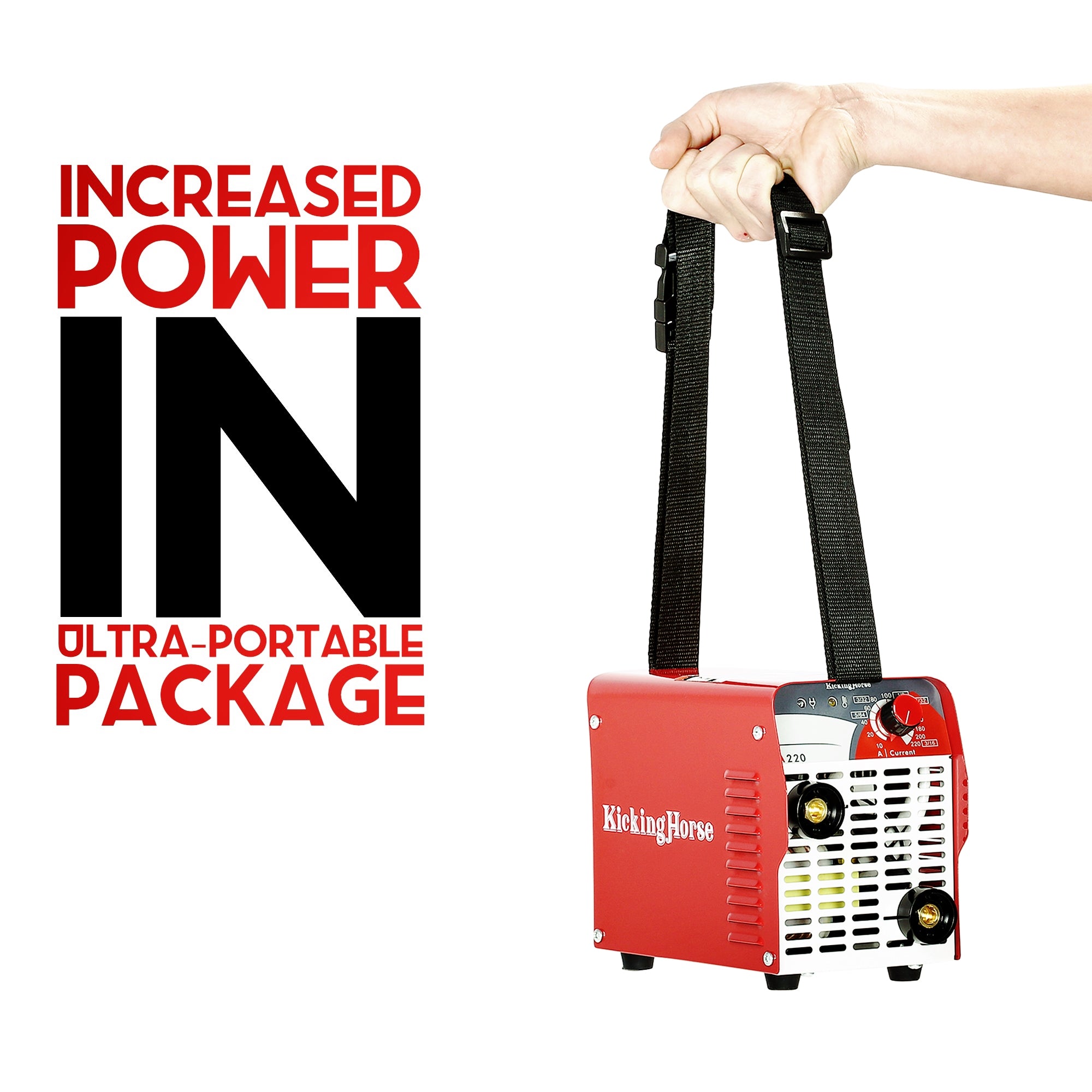

A220 IGBT INVERTER STICK WELDING MACHINE

High Power, High Rating.

> 220 amp highest-in-class rated output, welds 3/8 plate with 3/16 rod in single pass.
> Optimized for dirty power and fluctuating voltage, engineered particularly suitable for generator.
> Full-metal structure. No fragile plastic components are used in the body – built to last.

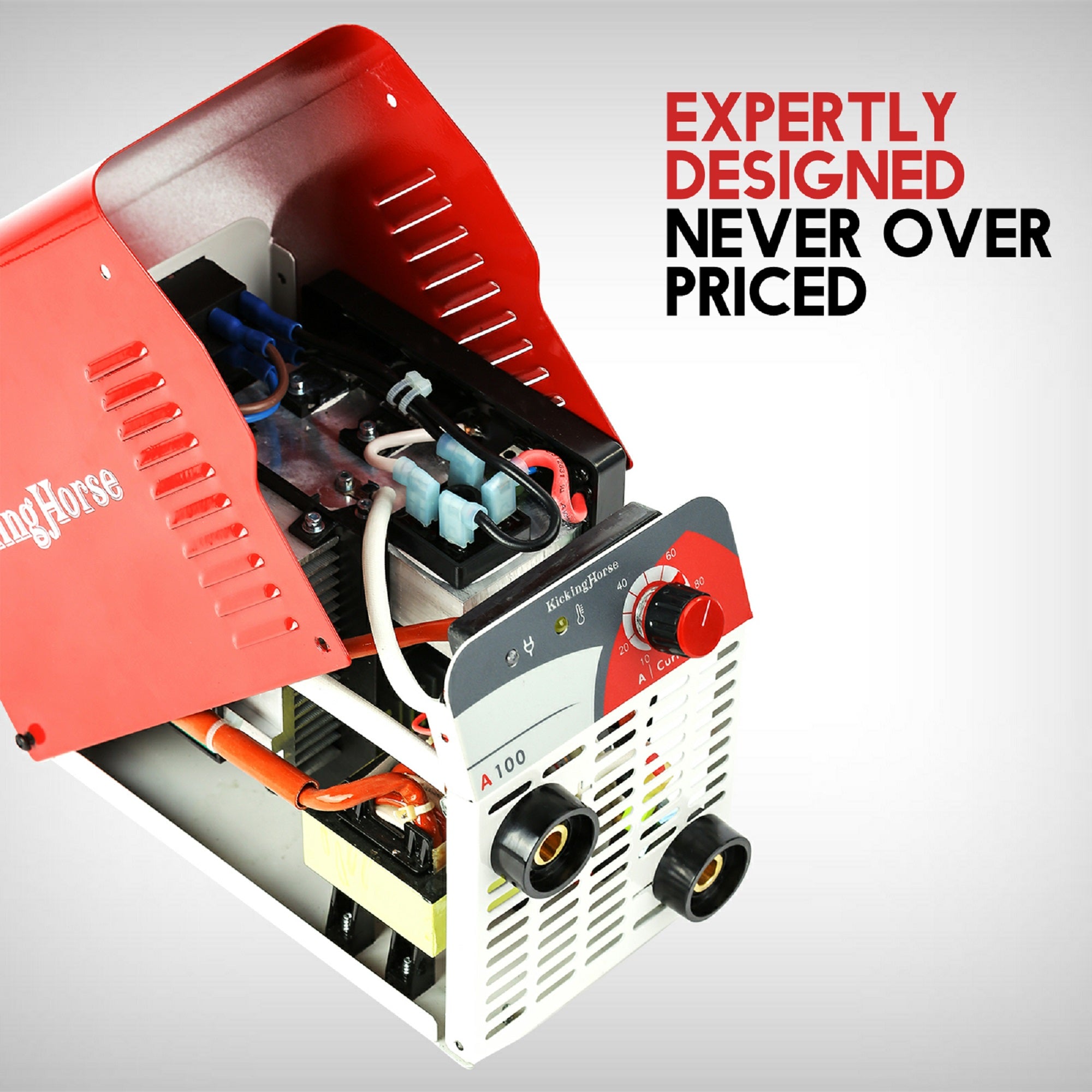

> State of art inverter technology provides exceptional quality DC performance.
> Ideal for indoor outdoor repair, fabrication and construction where high reliability & durability is required.

Product Highlight

Protection with error indicator light

Built-in temperature, voltage and current sensors provide maximum protection for operator and machine.

Optimized for dirty or unreliable power

Delivers consistent performance from 160V up to 270V input voltage, even with generator.

Reliability is always guaranteed

> Moisture-proof design.
> Salt spray-proof design.
> Corrosion-proof design.

Details Preview

Small box, Big Power!

> Unmatched rated output 220A @ 25 % duty cycle, far outperforms its transformer-based counterparts in the market.
> The inverter-based system offers max 74V open circuit voltage (OCV), doubled the traditional transformer welder, and provides superiors arc strike performance on dirty surface and 3/16 in rods.

Industrial grade accessories

> Easy load 200A electrode holder stinger.
> Crocodile clip style spring loaded welding earth clamp.
> Equipped with AWG #3 heavy duty welding / ground cable which deliver powerful smoother arc and prevent overheating.

3 specialized built-in functions allow anyone to easily lay a beautiful bead

Automatic Hot Start allows operator strike the arc easily at rust or paint surface.

Built-in Anti-Stick circuit will automatically boost the current when the electrode is glued to the metal, make it easy to rip off the electrode and re-strike the arc.

Adaptive arc-force will optimize the character of the arc to deliver exactly what you want.

Specification - All parameters are certified by Canadian Safety Association (CSA/US)

Input
Duty cycle
Maximum amperage output
Minimum amperage output
Circuit breaker requirement
Generator requirement
Open circuit voltage
Electrode size
Electrodes types
Weldable metals
Welding capacities
Dimension
Weight

208/230 volt, 60Hz single phase
25% @ 220 amps, ambient temperature 104F (40°C)
220 amps
10 amps
50 amps 220V
5000W non-inverter type generator recommended
74 volts
1/16 inch to 3/16 inch

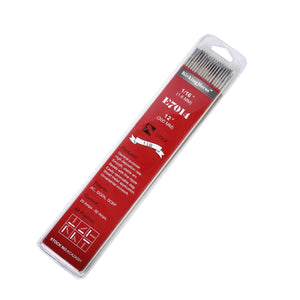

E6013, E7014, E7018, E6011, E6010
mild steel, cast iron, stainless steel, hard surfacing
3/18 inch mild steel
9x4.7x6.7 inch
7.7 lb

Package come complete with

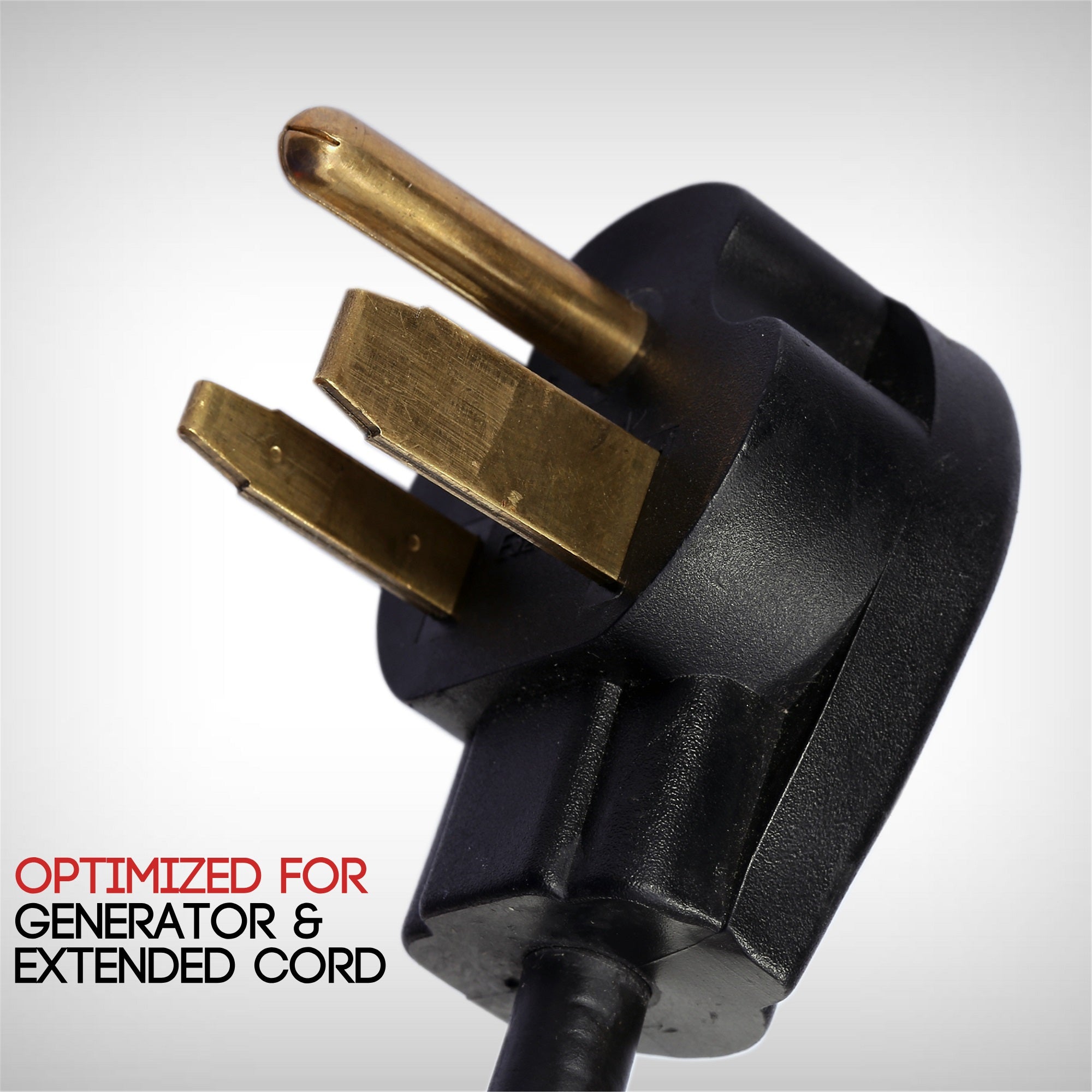

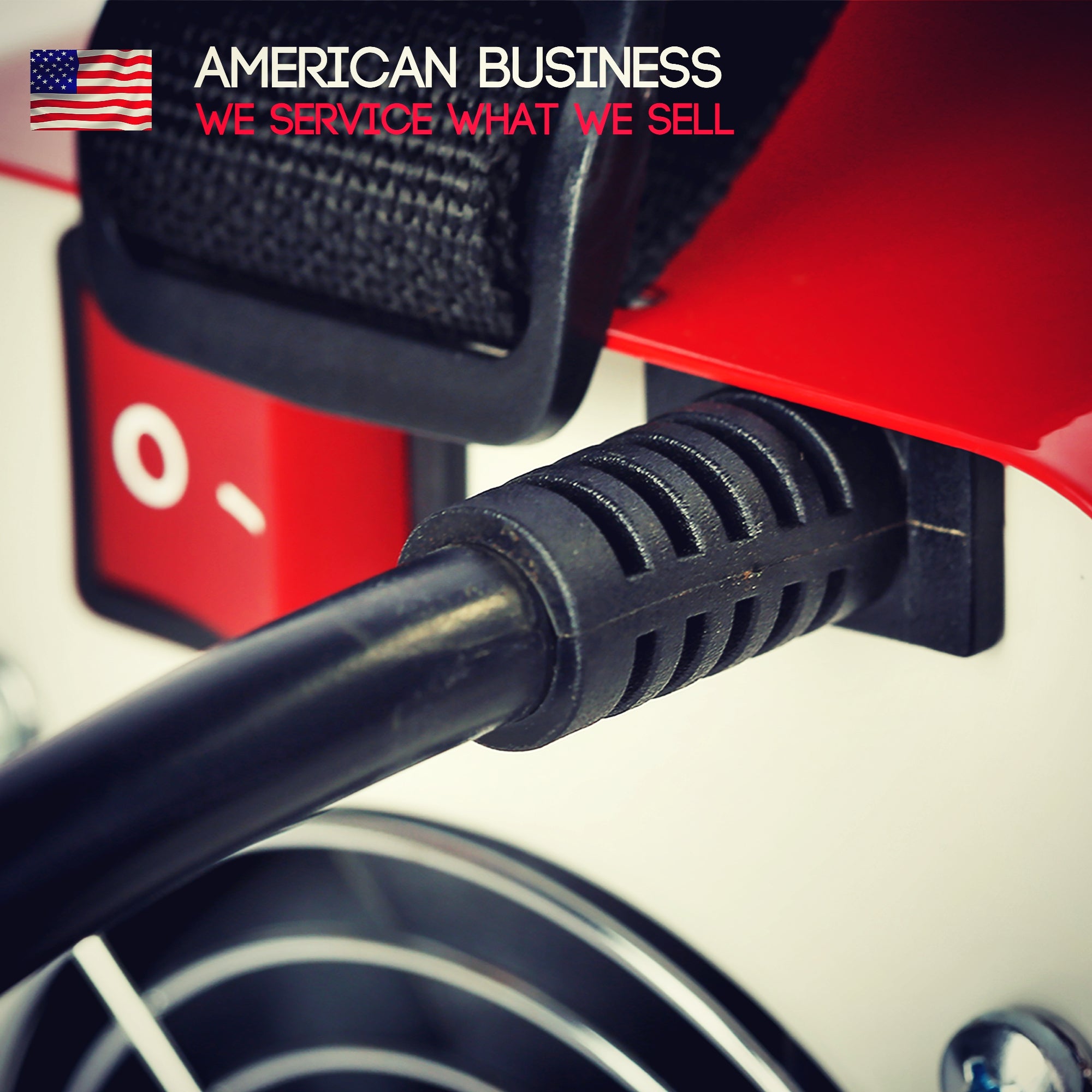

5ft(1.5m) 3 x AWG#12 power cord with NEMA 6-50P 220V "welder" plug

200A ground clamp with 5ft(1.5M) AWG#4 lead and Dinse 25 connection

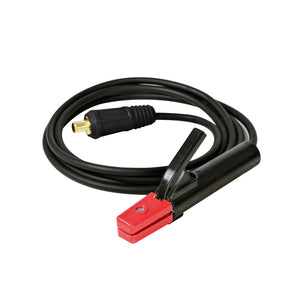

200A electrode holder with 5ft(1.5M) AWG#4 lead and Dinse 25 connection

Easy 4 steps for return and replacement

This product is covered by

1 year (up to 2 year) warranty in USA!

Contact customer service or Submit warranty claim.

Receive prepaid return label through email.

Drop off to any UPS location.

Wait for the refund or replacement.
