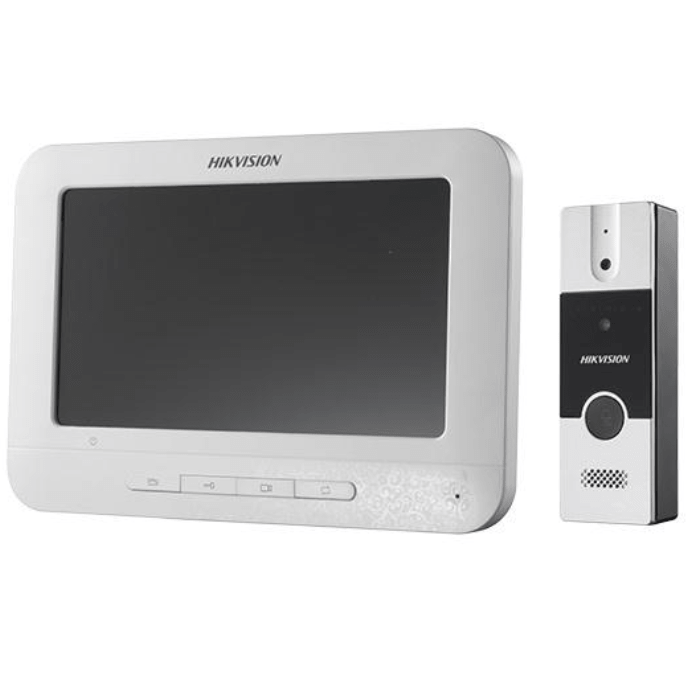

Hikvision DS-KIS202 Video Door Phone Intercom Kit
including DS-KB2411-IM x 1 and DS-KH2220 x 1

Key Features
Door Station

• Self-adaptive IR supplement
• One-touch calling
• Pinhole camera with 720 x 576 @ 25 fps
• Unlock controlling

Indoor Station

• Hands-free video intercom communication
• Supports monitoring the door station and the external analog camera
• Remote unlocking
• Convenient installation and easy operation

Video Door Phone Model DS-KIS202

Door Station (DS-KB2411-IM)
Video Parameters
Camera: 1/4" CMOS
Resolution: 720 × 576
Video frame rate: PAL: 25 fps

Audio parameters
Audio input: Built-in Omnidirectional Microphone
Audio output: Built-in Loudspeaker
Audio quality: Noise Suppression and Echo Cancellation

Light Supplement
Light supplement mode: Photosensitive IR Supplement, IR Range: 2 Meters

Device interfaces

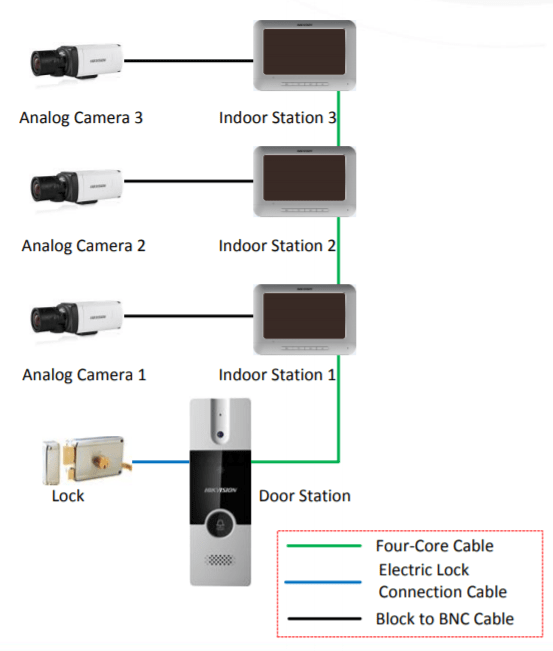

Four-wire interface: 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)
IO output: 1 Relay Output

General
Material: Aluminum Alloy
Power consumption: Max. 3W
Working temperature: -30° C to +60° C (-22° F to 140° F)
Working humidity: 10% to 90%
Dimension (L x W x H): 128 mm × 42 mm × 24.8 mm (5.0" × 1.7" × 0.9")


Indoor Station (DS-KH2220)
Display parameters
Display screen: 7-Inch Colorful TFT LCD
Display resolution: 800 × 480
Operation method: Physical Button

Audio parameters
Audio input: Built-in Omnidirectional Microphone
Audio output: Built-in Loudspeaker
Audio quality: Noise Suppression and Echo Cancellation

Device interfaces
Four-wire interface:
4 Four-Wire Interfaces
1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

General
Power supply: 12 VDC
Power consumption: ≤5 W
Working temperature: -10° C to + 55° C (14° F to 131° F)
Working humidity: 10% to 90%
Dimension (L x W x H): 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
